MB33 Backpack Mesh Radio, Beidou Navigation, Wi-Fi Coverage

Shenzhen Suntor Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

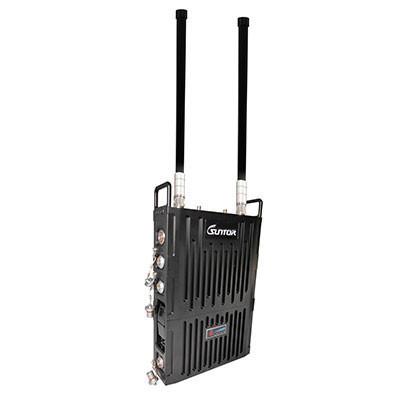

MB33 Backpack Mesh Radio, Beidou Navigation, Wi-Fi Coverage

  • 1
  • 2
  • 3
  • 4
  • 5

Model Number : MB33

Place of Origin : Shenzhen, China

Brand Name : SUNTOR

Certification : FCC, CE, RoHS

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Price : Negotiation

Packaging Details : Plastic Box

Delivery Time : 7-15 days

System Parameter Operating frequency : 1428~1448MHz

Transmission system : COFDM

RF Transmitted power : 2W

Protection degree : IP66

Contact Now

MB33 Backpack Mesh Radio, Beidou Navigation, Wi-Fi Coverage

MB33 Backpack Mesh Radio Specifications-v1.0_compr...

Introduction:

The backpack individual Mesh network radio with small size, light weight and equipped with a high-capacity removable battery, which is convenient for individual soldiers to carry and fully free their hands. Fast network access and automatic multi-hop relay can provide multimedia communication services such as voice group call, video backhaul, and relay transmission for individual soldiers, tactical teams, and tactical police dogs, and achieve efficient collaboration. Both: Beidou positioning function, but also support wifi coverage, can cooperate with wifi function smart terminal for various communications. The system adopts co-frequency networking and multi-hop trunking, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and mixed network topology. It can provide wireless broadband communication for "peacetime and emergency" tasks such as emergency response, anti-terrorism and riot prevention, covert reconnaissance, special operations, rescue and disaster relief, and daily patrols. The transmission distance can reach more than 10km in the open environment on the ground, 300~1000m in the blocking environment (depending on the blocking environment), and more than 30km from the air to the ground.

Advantages:

  • Centerless ad-hoc MESH networks

  • Optional frequency: 500~1400MHz(On request)

  • High transfer rate: up to 80Mbps

  • Strong receiving sensitivity: -92dBm

  • Instant ad-hoc networks

  • High data throughput rates

  • Robust reliable wireless IP networks

  • Operates between fast moving person or vehicle

  • Rapidly deployable wireless surveillance system

Applications:

  • Event security

  • Perimeter surveillance

  • Covert / concealed surveillance

  • SWAT / quick reaction teams

  • Inter-vehicle networking

  • Air-to-ground

  • Backhaul

Technical Parameters

System Parameter
Operating frequency 1428~1448MHz
Bandwidth 5/10/20MHz,Flexible and configurable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM(self-adaption)
Transmission capacity Peak rate 90Mbps@20MHz
RF Transmitted power 2W
Receive Sensitivity -97dBm@1MHz
Video input Support IP network video input , WIFI video access (HDMI video input need to be customized)
Networking function Networking capable ≥52 nodes
Networking hops >10 hops
Access time 5s after start up of the system
Network topology Centerless network, star network, chain network, mesh network, etc
Encryption mode AES128/AES256
Power supply mold Allocate DC 25.2V removable lithium battery
Power Consumption ≤30W
Equipment interface
Antenna interface N-K×2
GPS interface SMA-K
WIFI interface SMA-K
Ethernet interface Aviation interface,Support 100M network interface
Audio interface Aviation interface,Support hand microphone or earphone
Physical indicators
Dimension ≤275mm × 198mm ×52mm(include battery)
Equipment Weight ≤3kg(include battery)
Protection degree IP66
Working temperature -30℃~+65℃

Product Tags:

Backpack Mesh Radio



Beidou Navigation Backpack Radio



Backpack Radio IP66
